Lifting A Flicka

By Tom Davison · page 18 of the Winter 2014 issue

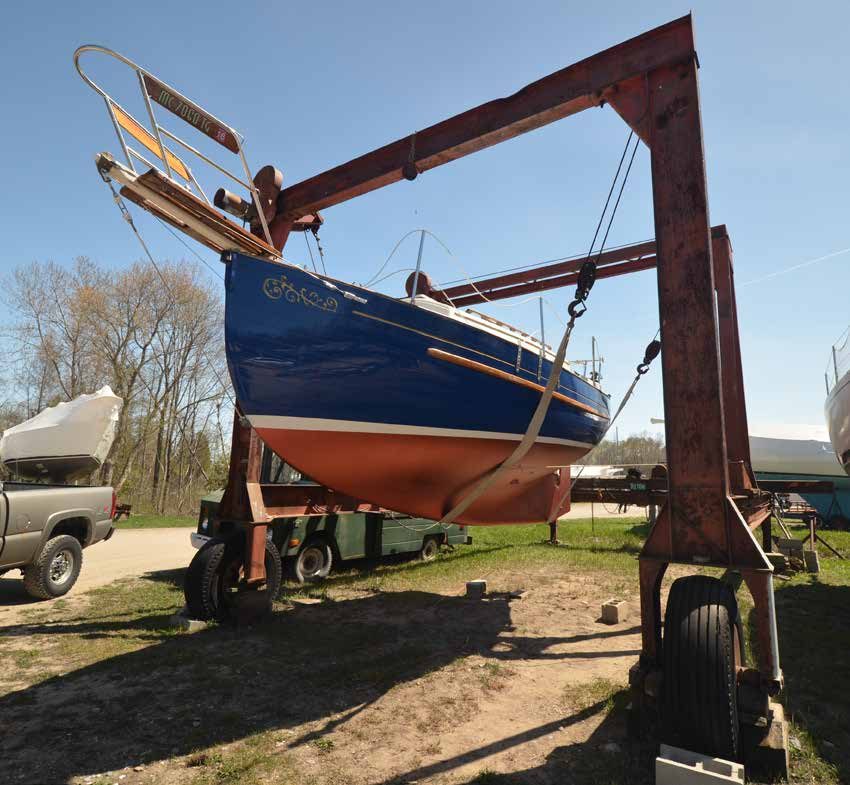

Waiting for her modified Jowi boat cradle, s/y ZANZIBAR hangs from a travel-lift. Note the brand new bottom paint!
Waiting for her modified Jowi boat cradle, s/y ZANZIBAR hangs from a travel-lift. Note the brand new bottom paint! · Photo: Tom Davison

If the boat yard is unfamiliar with the Flicka, you need to let the lift operator know about where to place the slings. The placement of the straps is important. An image of Pacific Seacraft’s factory lift plan shows that the lifting points are roughly in-line with the fore and aft limits of the coach roof.

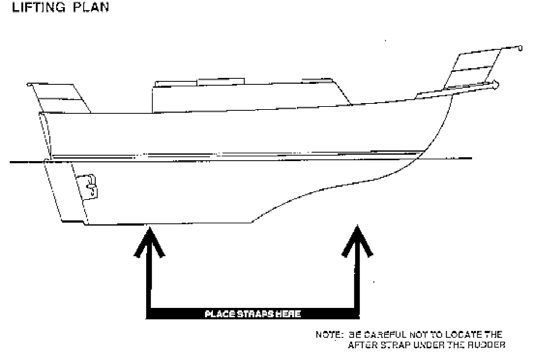

The Flicka Manual shows the correct placement of the lifting straps. Do NOT locate the after strap under the rudder!
The Flicka Manual shows the correct placement of the lifting straps. Do NOT locate the after strap under the rudder! · Drawing: Pacific Seacraft
Fresh bottom paint this season for s/y ZANZIBAR
Fresh bottom paint this season for s/y ZANZIBAR · Photo: Tom Davison

Plastic Strap Covers - The marina or boatyard should protect your sailboat from the straps. A plastic covering is often used to keep the bottom paint and topsides safe. I would expect this to be available.

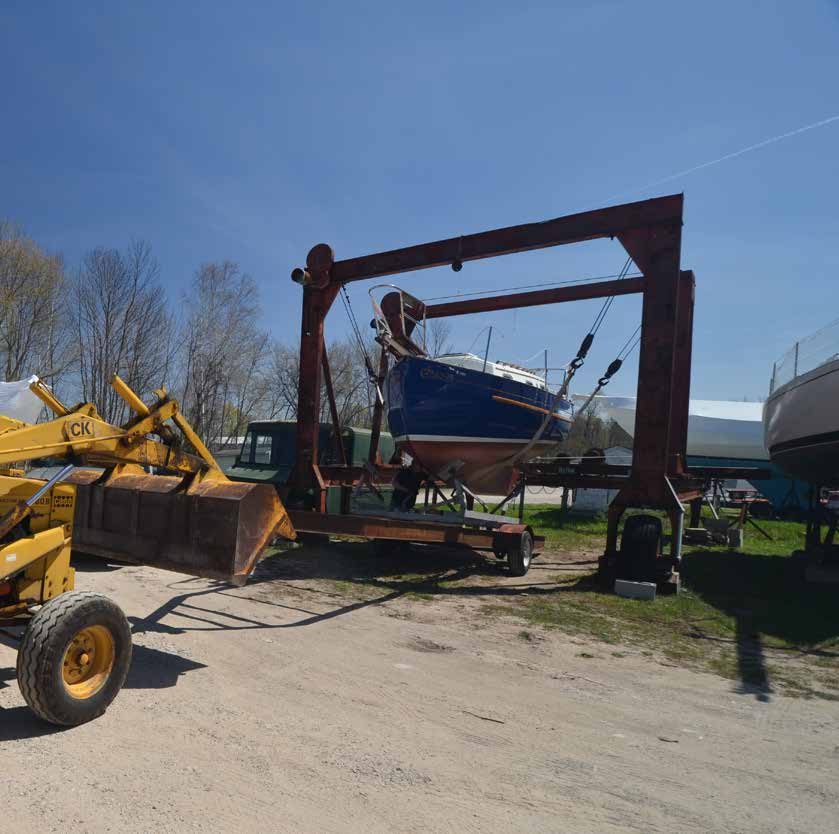

The modified Jowi cradle headed toward s/y ZANZIBAR
The modified Jowi cradle headed toward s/y ZANZIBAR · Photo: Tom Davison

Ropes - Because the forward strap isn’t placed under a flat part of the hull, it is very important that a rope is used to keep the two straps where they are placed after the lifting begins.

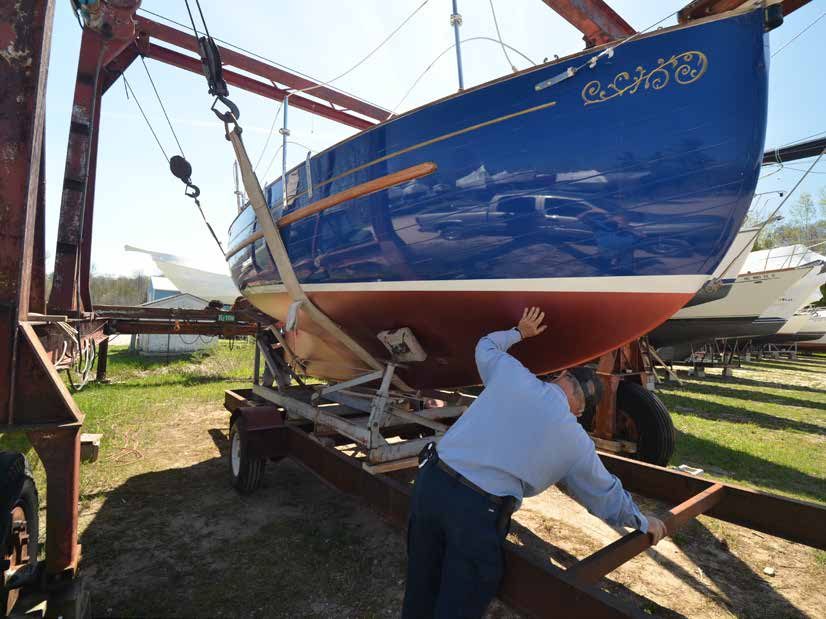

ZANZIBAR is carefully centered on the Jowi cradle
ZANZIBAR is carefully centered on the Jowi cradle · Photo: Tom Davison

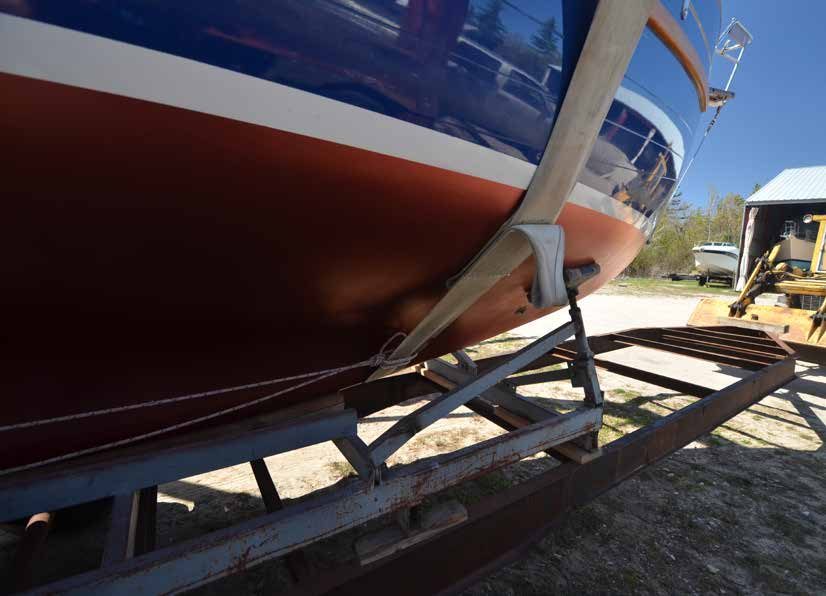

Note the rope between the two lifting straps
Note the rope between the two lifting straps · Photo: Tom Davison

Safety - The best thing you can do when the boat yard is moving your sailboat is to stay out of the way. Before moving your Flicka, you should ask a question or two. They will explain what they are doing. If something is needed, they will ask for it.

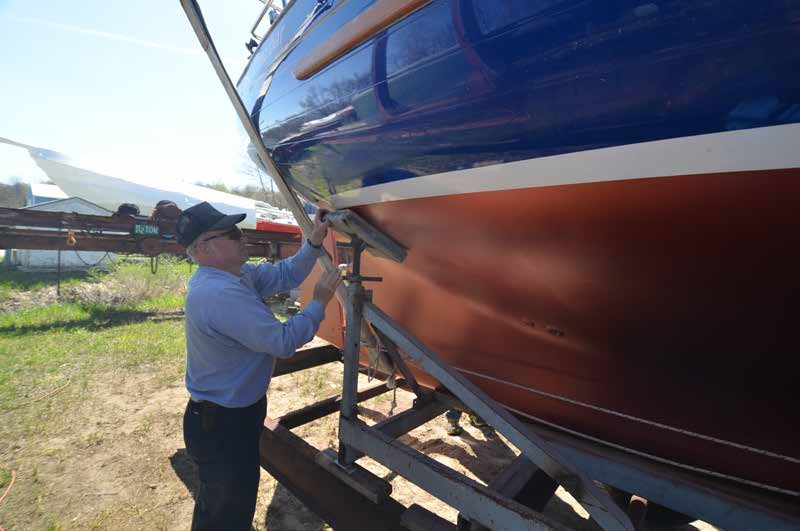

After centering , the four support pads were adjusted to the hull
After centering , the four support pads were adjusted to the hull · Photo: Tom Davison

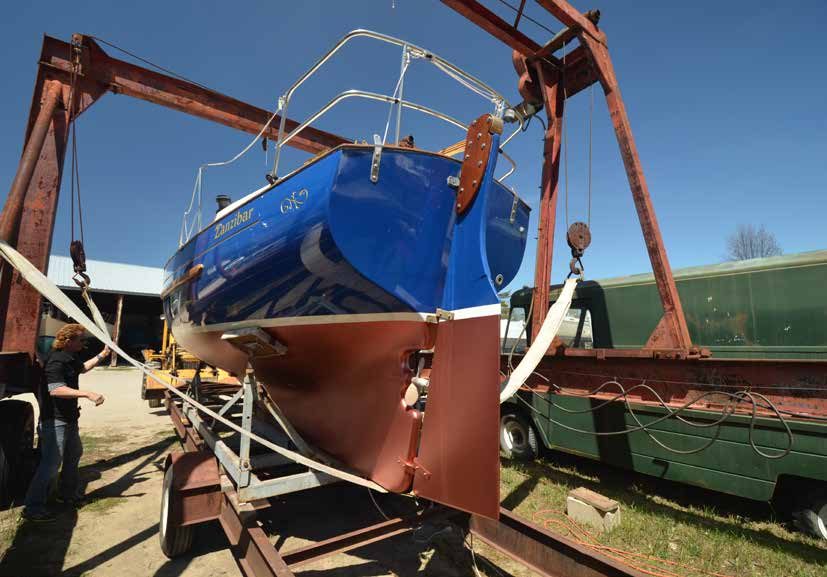

With pads adjusted to the hull, the lifting straps can be removed
With pads adjusted to the hull, the lifting straps can be removed · Photo: Tom Davison

The lift is usually a fast operation. Nothing fancy, just pick up the Flicka, move the trailer under the hull, lower, then position, and tie down. A-B-C and you are on the road.
